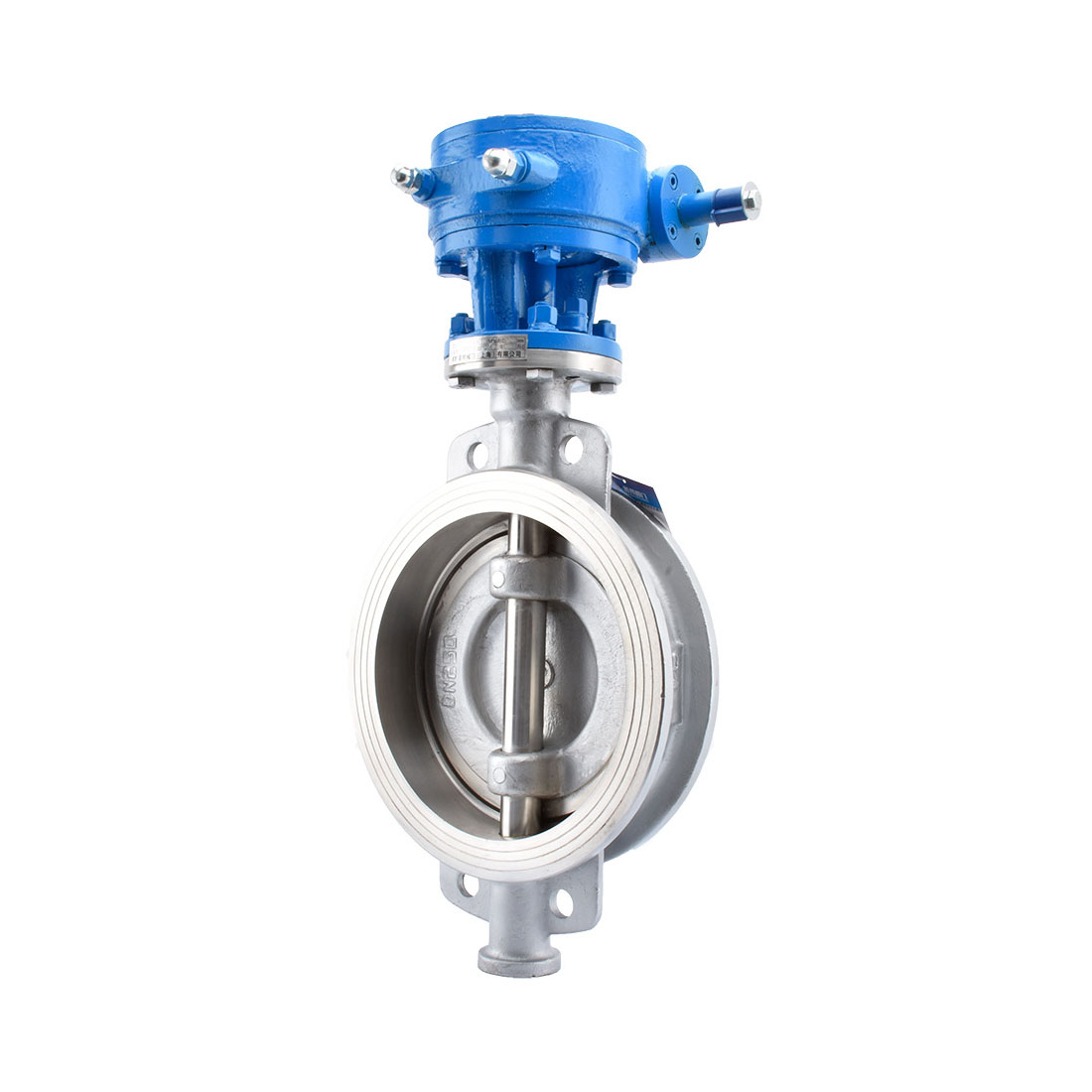

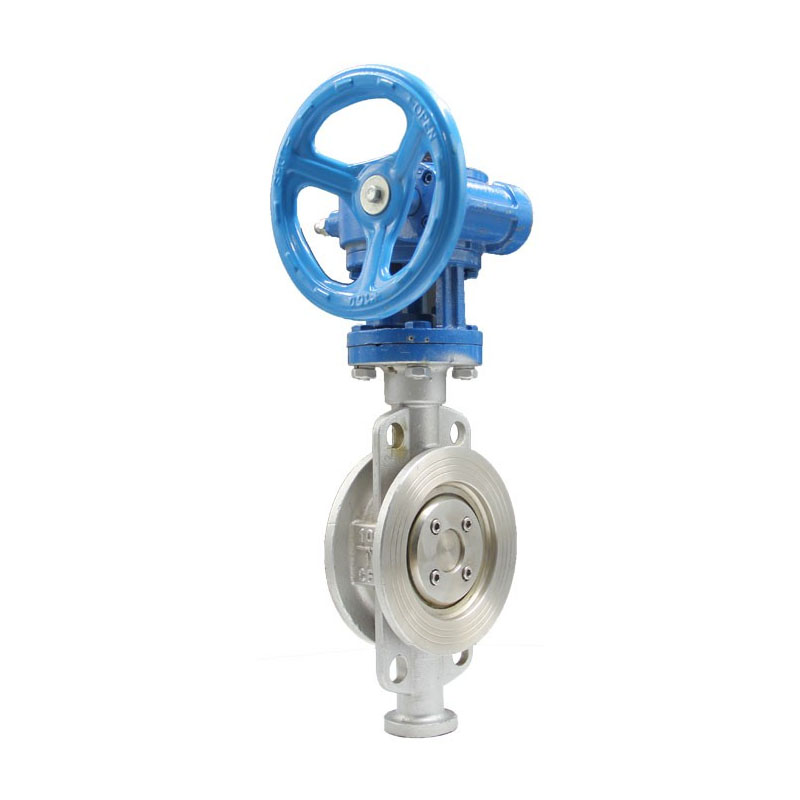

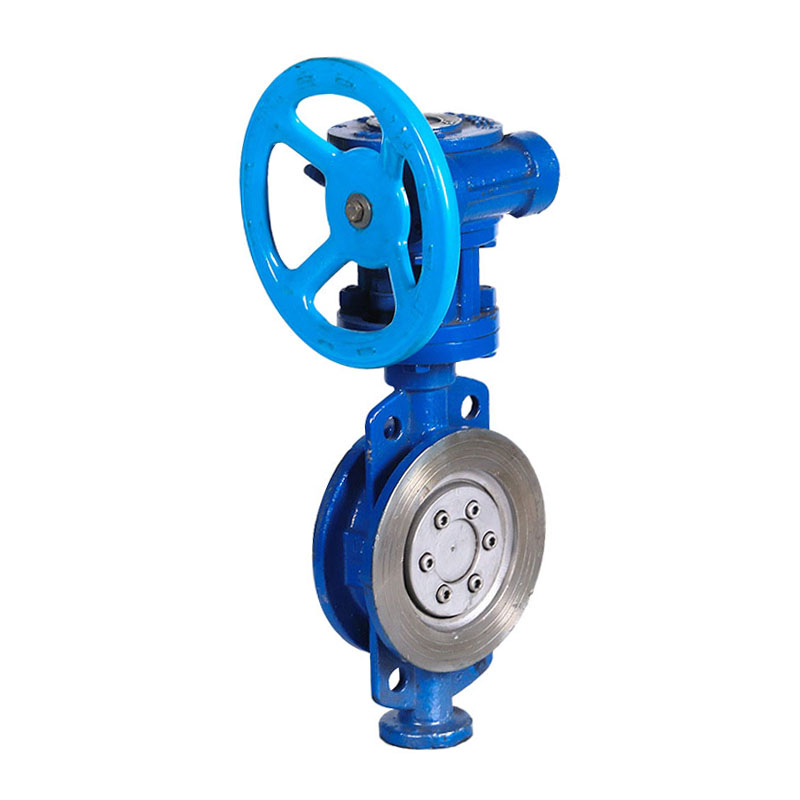

Wafer Type Tripple Eccentric Butterfly Valve

The plant has mastered the production of butterfly valves with triple eccentricity DN 50 - DN 1600 PN 10, PN 16, PN 25.

The range of triple eccentricity valves includes:

- 3-eccentric flanged disc valves;

- 3-eccentric flanged disc valves;

- 3-eccentric disc valves for welding (welded).

ADVANTAGES OF TRIPLE-ECCENTRICITY VALVES

1. High maintainability of triple-eccentric valves, which is ensured by metal-to-metal sealing and the use of metallographic cartridges that ensure 100% tightness of the valve at temperatures up to +425 °C. If the seal fails, the cartridge can be replaced directly on the disc without disassembling the shutter.;

2. On request, a polymer coating or a coating made of an EPDM rubber compound can be applied to the body and discs of the triple-eccentricity shutter. Valves with these coatings can be used in aggressive working environments.;

3. The sealing ring is being re-processed on the gate itself;

4. The triple-eccentricity shutter body is coated with an anti-corrosion primer;

5. Metal with a thickness of at least 8 mm is welded onto the gate seat, which significantly extends the service life of the product;

6. The steel elements of the 3 eccentric valves are heat treated;

7. Triple eccentric valves manufactured by our factory are guaranteed for 12 months from the date of commissioning, but not more than 24 months from the date of delivery.

Drawing of Tripple offset wafer butterfly valve with gear operatioon

Materials of Main Parts

Main Size & Weight

*The above dimensions are for reference only.
