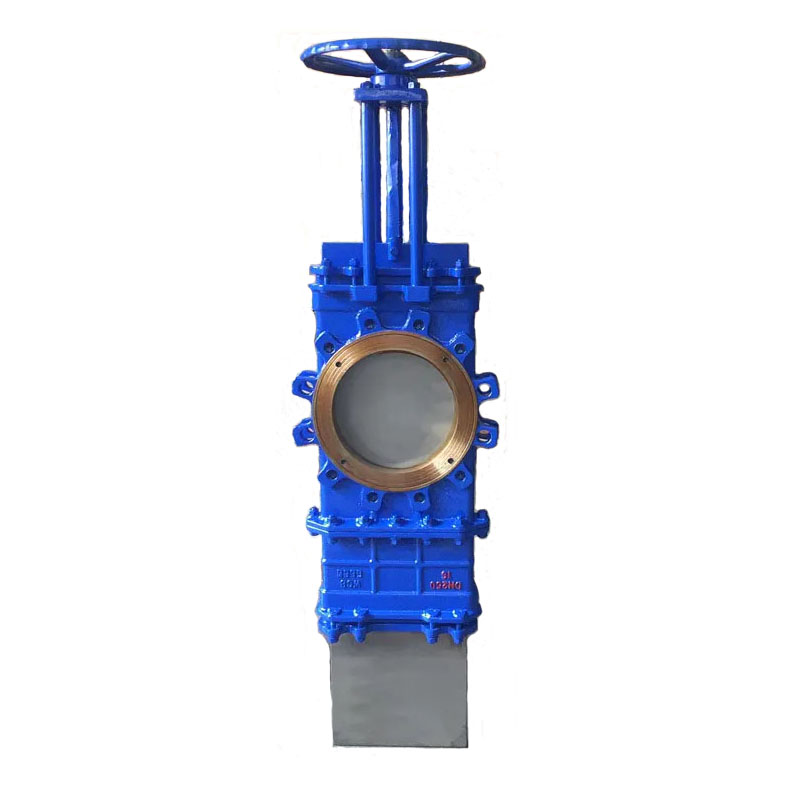

Knife gate valve with through gate
The gate valve is a very reliable type of shut-off valve, which has characteristic features of the shut-off element design. The gate in these valves is most often called a "knife", "slide" or "disc". The slide gate valve uses a metal plate or a metal wedge, which is capable of cutting various inclusions in the liquid flowing inside its body. This explains the purpose of this type of shut-off valve: blocking the flow of the working medium, which has a high viscosity, the ability to crystallize and is characterized by the presence of solid and abrasive particles, which are mostly active chemicals.
Drawing of Knife gate valve with through gate
Materials of Main Parts
| No. | Part Name | Material |
| 1 | Disc | 316 |
| 2 | Packing gland | CF8M |
| 3 | Bolt | B8 |
| 4 | Nut | B8 |
| 5 | Packing | PTFE |
| 6 | Body | CF8M |
| 7 | Stud | B8 |
| 8 | Sealing Ring | PTFE |
| 9 | Seat | 316 |
| 10 | Sealing Ring | 316 |
| 11 | Seat | VITON |
| 12 | Packing | PTFE |
| 13 | Packing gland | CF8M |
| 14 | Pin | 316 |
| 15 | Cotter Pin | 316 |
| 16 | Pusher | |
| 17 | Yoke | 316 |
| 18 | Handwheel | Cast Iron |
Main Size & Weight
| PN, MPa | DN, mm | L | D | D1 | D2 | H | H1 | n-M |
| 0.6 | 50 | 50 | 140 | 110 | 90 | 316 | 225 | 4-M12 |
| 65 | 50 | 160 | 130 | 110 | 356 | 265 | 4-M12 | |
| 80 | 50 | 190 | 150 | 125 | 397 | 310 | 4-M16 | |
| 100 | 50 | 210 | 170 | 145 | 461 | 370 | 4-M16 | |
| 125 | 50 | 240 | 200 | 175 | 536 | 430 | 8-M16 | |
| 150 | 60 | 265 | 225 | 200 | 600 | 495 | 8-M16 | |
| 200 | 60 | 320 | 280 | 255 | 650 | 630 | 8-M16 | |
| 250 | 70 | 375 | 335 | 310 | 850 | 770 | 12-M26 | |
| 300 | 76 | 440 | 395 | 362 | 980 | 895 | 12-M20 | |
| 350 | 76 | 490 | 445 | 412 | 1150 | 1050 | 12-M20 | |
| 400 | 89 | 540 | 495 | 462 | 1250 | 1185 | 16-M20 | |
| 450 | 89 | 595 | 550 | 518 | 1420 | 1320 | 16-M20 | |
| 500 | 114 | 645 | 600 | 568 | 1580 | 1455 | 16-M20 | |
| 600 | 114 | 755 | 705 | 670 | 1850 | 1720 | 20-M22 |
| PN, MPa | DN, mm | L | D | D1 | D2 | H | H | n-M |
| 1,0 | 300 | 76 | 440 | 400 | 368 | 980 | 895 | 12-M20 |
| 350 | 76 | 500 | 460 | 428 | 1150 | 1050 | 16-M20 | |
| 400 | 89 | 565 | 515 | 482 | 1250 | 1185 | 16-M22 | |
| 450 | 89 | 615 | 565 | 532 | 1420 | 1320 | 20-M22 | |
| 500 | 114 | 670 | 620 | 585 | 1580 | 1455 | 20-M22 | |
| 600 | 114 | 780 | 725 | 685 | 1850 | 1720 | 20-M27 |
*The above dimensions are for reference only.
