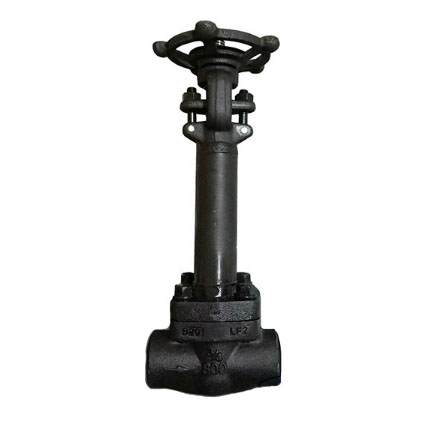

SOCKET WELD FORGED STEEL GATE VALVE WITH STEM EXTENSION
Wedge steel gate valves (ZKS). The valves are designed to be installed as a shut-off mechanism on pipelines transporting liquid and gaseous media. The valves ensure that the flow of the medium is blocked in any direction. Connection to the pipeline: flange, coupling, butt welding, lap welding.
Drawing of a forged steel socket weld gate valve with stem extension
Materials of Main Parts
| No. | Part Name | Material |
| 1 | Body | LF2 |
| 2 | Seat | 2Cr13 |
| 3 | Disc | 2Cr13 |
| 4 | Stem | 2Cr13 |
| 5 | Gasket | 304+graphite |
| 6 | Bonnet | LF2 |
| 7 | Stud | 304 |
| 8 | Packing | Flexible graphite |
| 9 | Packing gland | WCB |
| 10 | Gland | WCB |
| 11 | Eyebolt | 304 |
| 12 | Nut | 304 |
| 13 | Stem nut | 2Cr13 |
| 14 | Handwheel | Cast iron |
Main Size & Weight
| PN, MPa | DN, mm | d(FB) | L | W | H≈ | Approximate weight, kg |
| 1,6-4,0 | 15 | 13 | 92 | 125 | 339 | 7,2 |
| 20 | 18 | 111 | 125 | 370 | 9,5 | |
| 25 | 24 | 120 | 160 | 410 | 13,5 | |
| 32 | 29 | 172 | 180 | 474 | 20,6 | |
| 40 | 36,5 | 172 | 180 | 474 | 25,8 | |
| 50 | 46.5 | 200 | 200 | 546 | 29,0 |
| PN, MPa | DN, mm | d(FB) | L | W | H≈ | Approximate weight, kg |
| 6,4-10,0 | 15 | 13 | 92 | 125 | 339 | 9,4 |
| 20 | 18 | 111 | 125 | 370 | 12,4 | |
| 25 | 24 | 120 | 160 | 410 | 17,6 | |
| 32 | 29 | 172 | 180 | 474 | 26,8 | |
| 40 | 36,5 | 172 | 180 | 474 | 33,5 | |
| 50 | 46.5 | 200 | 200 | 546 | 37,7 |
*The above dimensions are for reference only.
