SOCKET WELD FORGED STEEL GATE VALVE
Wedge steel gate valves (ZKS). The valves are designed to be installed as a shut-off mechanism on pipelines transporting liquid and gaseous media. The valves ensure that the flow of the medium is blocked in any direction. Connection to the pipeline: flange, coupling, butt welding, lap welding.

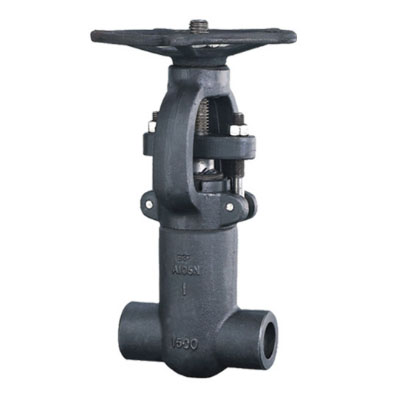

Drawing of a forged steel gate valve with self-sealing cap
Materials of Main Parts
| № | Part Name | Material |
| 1 | Body | A105 |
| 2 | Seat | 2Cr13 |
| 3 | Disc | 2Cr13 |
| 4 | Stem | 2Cr13 |
| 5 | Gasket | 304+graphite |
| 6 | Bonnet | A105 |
| 7 | Stud | Ст.35 |
| 8 | Packing | Flexible graphite |
| 9 | Packing Gland | WCB |
| 10 | Gland | WCB |
| 11 | Eyebolt | Ст.35 |
| 12 | Nut | Ст.45 |
| 13 | Stem nut | 2Cr13 |
| 14 | Handwheel | Grey Iron |
Main Size & Weight
| PN, MPa | DN, mm | d(FB) | L | W | H≈ | Approximate weight, kg |
| 16,0 | 15 | 13 | 140 | 125 | 321 | 11.5 |
| 20 | 18 | 140 | 125 | 321 | 11.0 | |
| 25 | 24 | 140 | 160 | 321 | 10.2 | |
| 32 | 29 | 178 | 160 | 380 | 20.5 | |
| 40 | 36.5 | 178 | 180 | 414 | 21.7 | |
| 50 | 46.5 | 216 | 240 | 502 | 43.5 |
*The above dimensions are for reference only.
