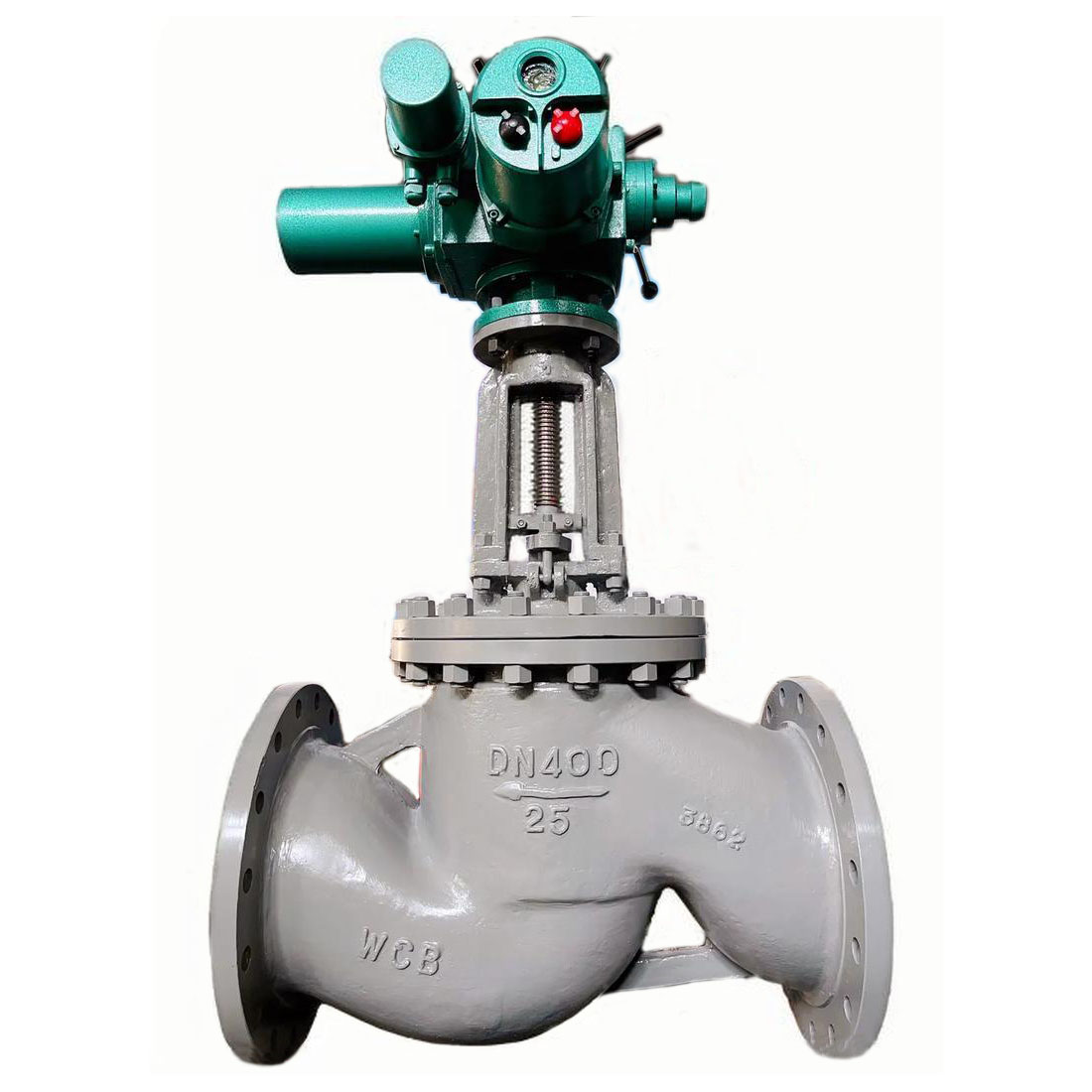

Cast steel globe valve (shut-off valve) with electric actuator
A steel valve (shut-off valve) is a kind of structural type of valve for a pipeline in which a special shut—off valve moves reciprocatingly along the central axis of the sealing surface to block the flow of the working fluid.
Steel valves (shut-off valves) are used as shut-off devices on pipelines for steam and water and various technological lines, as well as its working medium can be liquefied and natural gases, carbon dioxide, ammonia, and corrosive substances.
Steel valves have significant differences in operation from their cast-iron counterparts, first of all, they have rather higher nominal pressure and operating temperatures. Because of this, it can be installed in more severe operating conditions. The steel valve is mainly available in flanged design, which ensures reliable fastening, high-quality sealing of the joint, simplified disassembly without affecting the other locking elements, as well as cap, coupling and welded versions. Valves (shut-off valves) made of steel function perfectly even with large pressure drops, they can withstand the temperature of the working fluid up to + 425 ° C.
Drawing of flanged globe valve with electric actuator
Materials of Main Parts
| No. | Part Name | Material |
| 1 | Body | WCB |
| 2 | Disc | WCB+2CR13 |
| 3 | Stem | 2Cr13 |
| 4 | Gasket | 304+graphite |
| 5 | Bolt | Ст.35 |
| 6 | Nut | Ст.45 |
| 7 | Bonnet | WCB |
| 8 | Packing | Graphite |
| 9 | Pin | 1Cr13 |
| 10 | Gland | WCB |
| 11 | Electric actuator | Assembly |
Main Size & Weight
| PN | DN | L | D | D1 | D2 | n-фd | H≈ |
| 16 | 50 | 230 | 160 | 125 | 100 | 4-ф18 | 640 |
| 16 | 65 | 290 | 180 | 145 | 120 | 4-ф18 | 687 |
| 16 | 80 | 310 | 195 | 160 | 135 | 8-ф18 | 715 |
| 16 | 100 | 350 | 215 | 180 | 155 | 8-ф18 | 775 |
| 16 | 125 | 400 | 245 | 210 | 185 | 8-ф18 | 820 |
| 16 | 150 | 480 | 280 | 240 | 210 | 8-ф23 | 870 |
| 16 | 200 | 600 | 335 | 295 | 265 | 12-ф23 | 948 |
| 16 | 250 | 650 | 405 | 355 | 320 | 12-ф25 | 1085 |
| 16 | 300 | 750 | 460 | 410 | 375 | 12-ф25 | 1285 |
| 16 | 350 | 850 | 520 | 470 | 436 | 16-ф25 | 1390 |
| 16 | 400 | 950 | 580 | 525 | 485 | 16-ф300 | 1530 |
| 16 | 450 | 1050 | 640 | 585 | 545 | 20-ф30 | 1580 |
| 16 | 500 | 1150 | 705 | 650 | 608 | 20-ф34 | 1770 |
| 16 | 600 | 1350 | 840 | 770 | 718 | 20-ф41 | 1970 |
| PN | DN | L | D | D1 | D2 | n-фd | H≈ |
| 25 | 50 | 230 | 160 | 125 | 100 | 4-ф18 | 640 |
| 25 | 65 | 290 | 180 | 145 | 120 | 8-ф18 | 687 |
| 25 | 80 | 310 | 195 | 160 | 135 | 8-ф18 | 715 |
| 25 | 100 | 350 | 230 | 190 | 160 | 8-ф23 | 775 |
| 25 | 125 | 400 | 270 | 220 | 188 | 8-ф25 | 820 |
| 25 | 150 | 480 | 300 | 250 | 218 | 8-ф25 | 870 |
| 25 | 200 | 600 | 360 | 310 | 278 | 12-ф25 | 1070 |
| 25 | 250 | 650 | 425 | 370 | 332 | 12-ф30 | 1146 |
| 25 | 300 | 750 | 485 | 430 | 390 | 16-ф30 | 1285 |
| 25 | 350 | 850 | 550 | 490 | 448 | 16-ф34 | 1390 |
| 25 | 400 | 950 | 610 | 550 | 505 | 16-ф34 | 1530 |
| 25 | 450 | 1050 | 660 | 600 | 555 | 20-ф34 | 1580 |
| 25 | 500 | 1150 | 730 | 660 | 610 | 20-ф41 | 1810 |
| 25 | 600 | 1350 | 840 | 770 | 718 | 20-ф41 | 2170 |
| PN | DN | L | D | D1 | D2 | n-фd | H≈ |
| 40 | 50 | 230 | 160 | 125 | 100 | 4-ф18 | 733 |
| 40 | 65 | 290 | 180 | 145 | 120 | 8-ф18 | 768 |
| 40 | 80 | 310 | 195 | 160 | 135 | 8-ф18 | 796 |
| 40 | 100 | 350 | 230 | 190 | 160 | 8-ф23 | 840 |
| 40 | 125 | 400 | 270 | 220 | 188 | 8-ф25 | 918 |
| 40 | 150 | 480 | 300 | 250 | 218 | 8-ф25 | 971 |
| 40 | 200 | 600 | 375 | 320 | 282 | 12-ф30 | 1080 |
| PN | DN | L | D | D1 | D2 | n-фd | H≈ |
| 64 | 50 | 300 | 175 | 135 | 105 | 4-ф23 | 770 |
| 64 | 65 | 340 | 200 | 160 | 130 | 8-ф23 | 810 |
| 64 | 80 | 380 | 210 | 170 | 140 | 8-ф23 | 845 |
| 64 | 100 | 430 | 250 | 200 | 168 | 8-ф25 | 897 |
| 64 | 125 | 500 | 295 | 240 | 202 | 8-ф30 | 991 |
| 64 | 150 | 550 | 340 | 280 | 240 | 8-ф34 | 1006 |
| 64 | 200 | 650 | 405 | 345 | 300 | 12-ф34 | 1173 |
| PN | DN | L | D | D1 | D2 | n-фd | H≈ |
| 100 | 50 | 300 | 195 | 145 | 112 | 4-ф25 | 774 |
| 100 | 65 | 340 | 220 | 170 | 138 | 8-ф25 | 794 |
| 100 | 80 | 380 | 230 | 180 | 148 | 8-ф25 | 907 |
| 100 | 100 | 430 | 265 | 210 | 172 | 8-ф30 | 981 |
| 100 | 125 | 500 | 310 | 250 | 210 | 8-ф34 | 1092 |
| 100 | 150 | 550 | 350 | 290 | 250 | 12-ф34 | 1200 |
| 100 | 200 | 650 | 430 | 360 | 312 | 12-ф41 | 1285 |
| PN | DN | L | D | D1 | D2 | n-фd | H≈ |
| 160 | 50 | 300 | 245 | 190 | 152 | 8-ф30 | 622 |
| 160 | 65 | 340 | 260 | 205 | 168 | 8-ф30 | 663 |
| 160 | 80 | 380 | 300 | 240 | 200 | 8-ф34 | 701 |
| 160 | 100 | 430 | 355 | 285 | 238 | 8-ф41 | 845 |
| 160 | 125 | 500 | 390 | 318 | 270 | 12-ф41 | 860 |
| 160 | 150 | 550 | 480 | 400 | 345 | 12-ф48 | 910 |
| 160 | 200 | 650 | 545 | 450 | 390 | 12-ф54 | 960 |
*The above dimensions are for reference only.
