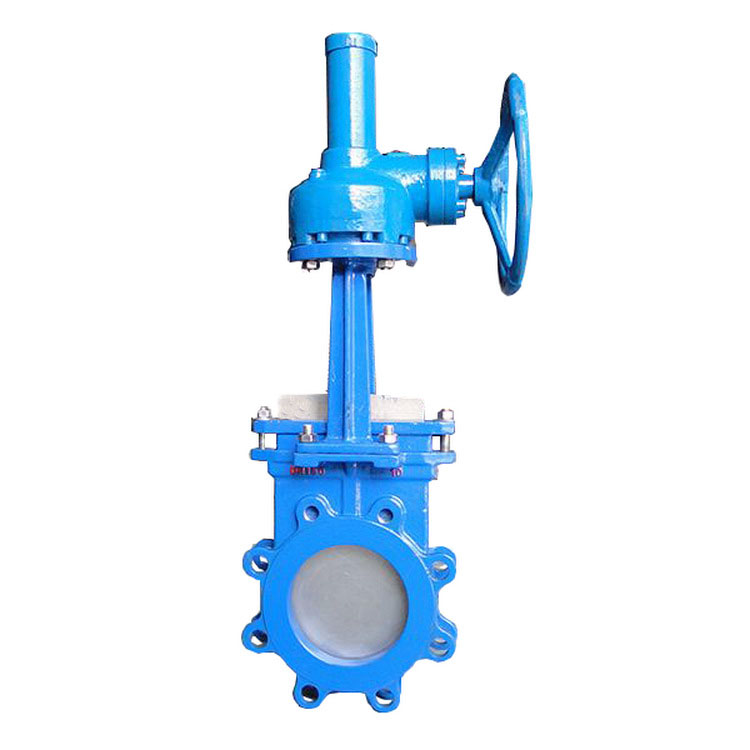

Gate valve (knife) wafer lug type with retractable spindle with gear
The gate valve is a very reliable type of shut-off valve, which has characteristic features of the shut-off element design. The gate in these valves is most often called a "knife", "slide" or "disc". The slide gate valve uses a metal plate or a metal wedge, which is capable of cutting various inclusions in the liquid flowing inside its body. This explains the purpose of this type of shut-off valve: blocking the flow of the working medium, which has a high viscosity, the ability to crystallize and is characterized by the presence of solid and abrasive particles, which are mostly active chemicals.
Drawing of Gate valve (knife) wafer lug type with retractable spindle with gear
Materials of Main Parts
| No. | Part Name | Material |
| 1 | Body | WCB |
| 2 | Seat | EPDM |
| 3 | Disc | 304 |
| 4 | Packing | PTFE+Graphite |
| 5 | Bolt | Steel 35 |
| 6 | Nut | Steel 45 |
| 7 | Round Pin | 2Cr13 |
| 8 | Yoke | WCB |
| 9 | Bolt | Steel 35 |
| 10 | Nut | Steel 45 |
| 11 | Packing gland | WCB |
| 12 | Gear | Assembly |
| 13 | Stem | 2Cr13 |
| 14 | Top flange | Q235 |
Main Size & Weight
| PN, MPa | DN, mm | L | D1 | D2 | H | n-M |
| 0.6 | 50 | 50 | 110 | 90 | 285 | 4-M12 |
| 65 | 50 | 130 | 110 | 298 | 4-M12 | |
| 80 | 50 | 150 | 125 | 315 | 4-M16 | |
| 100 | 50 | 170 | 145 | 365 | 4-M16 | |
| 125 | 50 | 200 | 175 | 400 | 8-M16 | |
| 150 | 60 | 225 | 200 | 475 | 8-M16 | |
| 200 | 60 | 280 | 255 | 540 | 8-M16 | |
| 250 | 70 | 335 | 310 | 630 | 12-M16 | |
| 300 | 76 | 395 | 362 | 780 | 12-M20 | |
| 350 | 76 | 445 | 412 | 885 | 12-M20 | |
| 400 | 89 | 495 | 462 | 990 | 16-M20 | |
| 450 | 89 | 550 | 518 | 1100 | 16-M20 | |
| 500 | 114 | 600 | 568 | 1200 | 16-M20 | |
| 600 | 114 | 705 | 670 | 1450 | 20-M22 | |
| 700 | 160 | 8110 | 775 | 1700 | 24-M22 | |
| 800 | 160 | 920 | 880 | 2000 | 24-M27 | |
| 900 | 160 | 1020 | 980 | 2300 | 24-M27 | |
| 1000 | 180 | 1120 | 1080 | 2500 | 28-M27 | |
| 1200 | 200 | 1340 | 1295 | 2800 | 32-M27 |
| PN, MPa | DN, mm | L | D1 | D2 | H | n-M |
| 1,0 | 50 | 50 | 125 | 100 | 300 | 4-M16 |
| 65 | 50 | 145 | 120 | 310 | 4-M16 | |
| 80 | 50 | 160 | 135 | 330 | 4-M16 | |
| 100 | 50 | 180 | 155 | 380 | 8-M16 | |
| 125 | 50 | 210 | 185 | 440 | 8-M16 | |
| 150 | 60 | 240 | 210 | 500 | 8-M20 | |
| 200 | 60 | 295 | 265 | 580 | 8-M20 | |
| 250 | 70 | 350 | 320 | 670 | 12-M20 | |
| 300 | 76 | 400 | 368 | 820 | 12-M20 | |
| 350 | 76 | 460 | 428 | 900 | 16-M20 | |
| 400 | 89 | 515 | 482 | 1020 | 16-M22 | |
| 450 | 89 | 565 | 532 | 1150 | 20-M22 | |
| 500 | 114 | 620 | 585 | 1250 | 20-M22 | |
| 600 | 114 | 725 | 685 | 1500 | 20-M27 | |
| 700 | 160 | 840 | 800 | 1750 | 24-M27 | |
| 800 | 160 | 950 | 898 | 2000 | 24-M30 | |
| 900 | 160 | 1050 | 998 | 2300 | 28-M30 | |
| 1000 | 180 | 1160 | 1110 | 2500 | 28-M30 | |
| 1200 | 200 | 1380 | 1325 | 2800 | 32-M36 |
*The above dimensions are for reference only.
