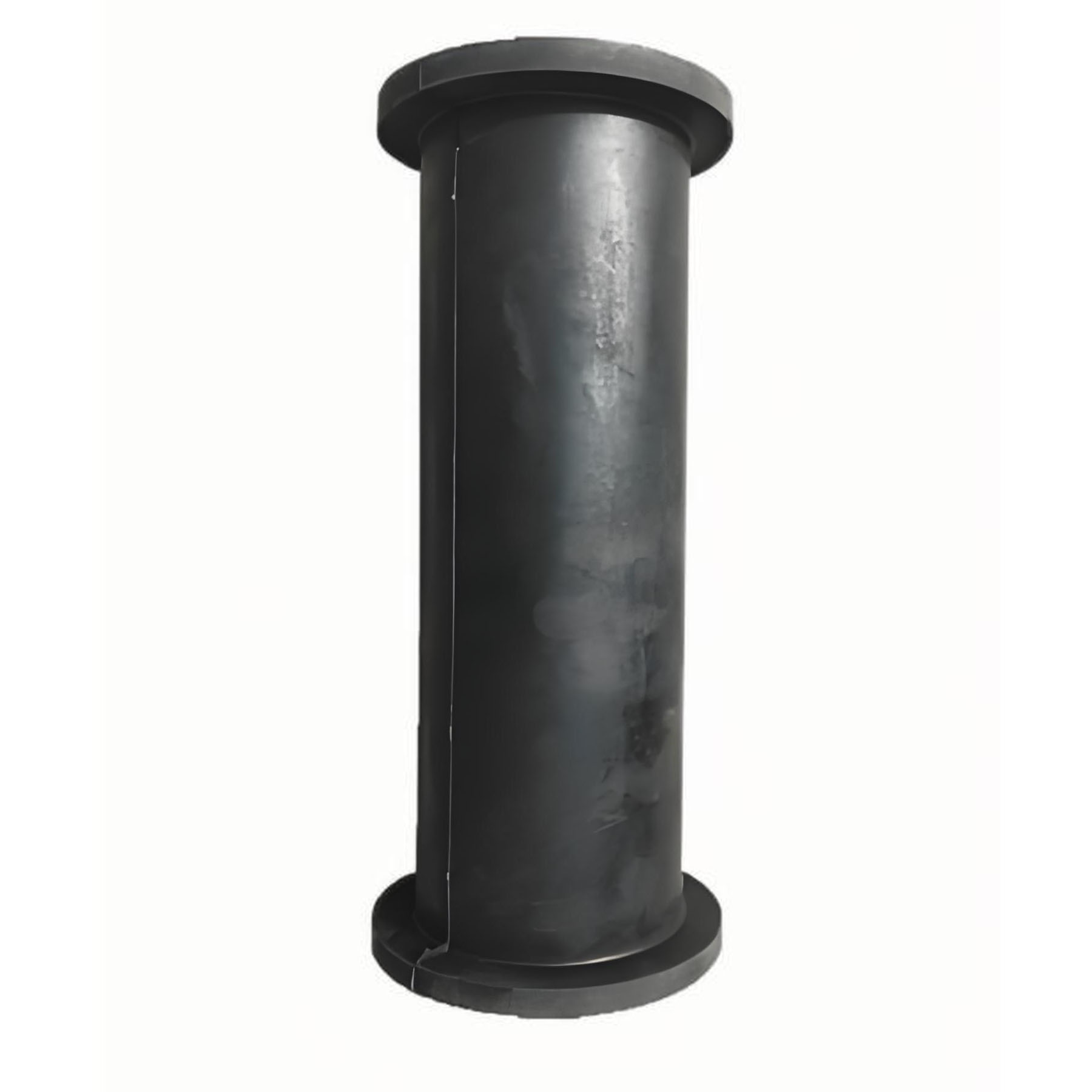

Rubber hose for pinch valves
The valve nozzle is designed for installation in aluminum hose valves as a flow device. Working medium: mineral oils, petroleum products, water, weak solutions of acids and alkalis at temperatures from 0 to +120 ° C.
The nozzles of the hose valves are made of high-quality rubber resistant to aggressive media, we recommend using it for use in the following environments:
aggressive abrasive pulp with particle size of solid inclusions up to 3 mm.;
solutions of alkalis and acids (including sulfuric, hydrochloric, and nitric);
petroleum products and oils;
dry building mixes and cement;
liquid media for water supply, sewerage and wastewater systems;
compound feed
Drawing of rubber hose for pinch valves
Materials
NR, EPDM, NBR, reinforced and non-reinforced
Main Size & Weight
| DN | L | L1 | ФD | ФD1 | ФD2 |
| 50 | 211 | 10 | 50 | 70 | 101 |
| 65 | 250 | 9.8 | 65 | 87 | 121 |
| 80 | 299 | 9.8 | 79 | 102 | 138 |
| 100 | 352 | 9.8 | 93.5 | 119 | 156 |
| 125 | 431 | 13.5 | 123 | 145 | 182 |
| 150 | 495 | 12.5 | 142 | 172 | 214 |
*The above dimensions are for reference only.
