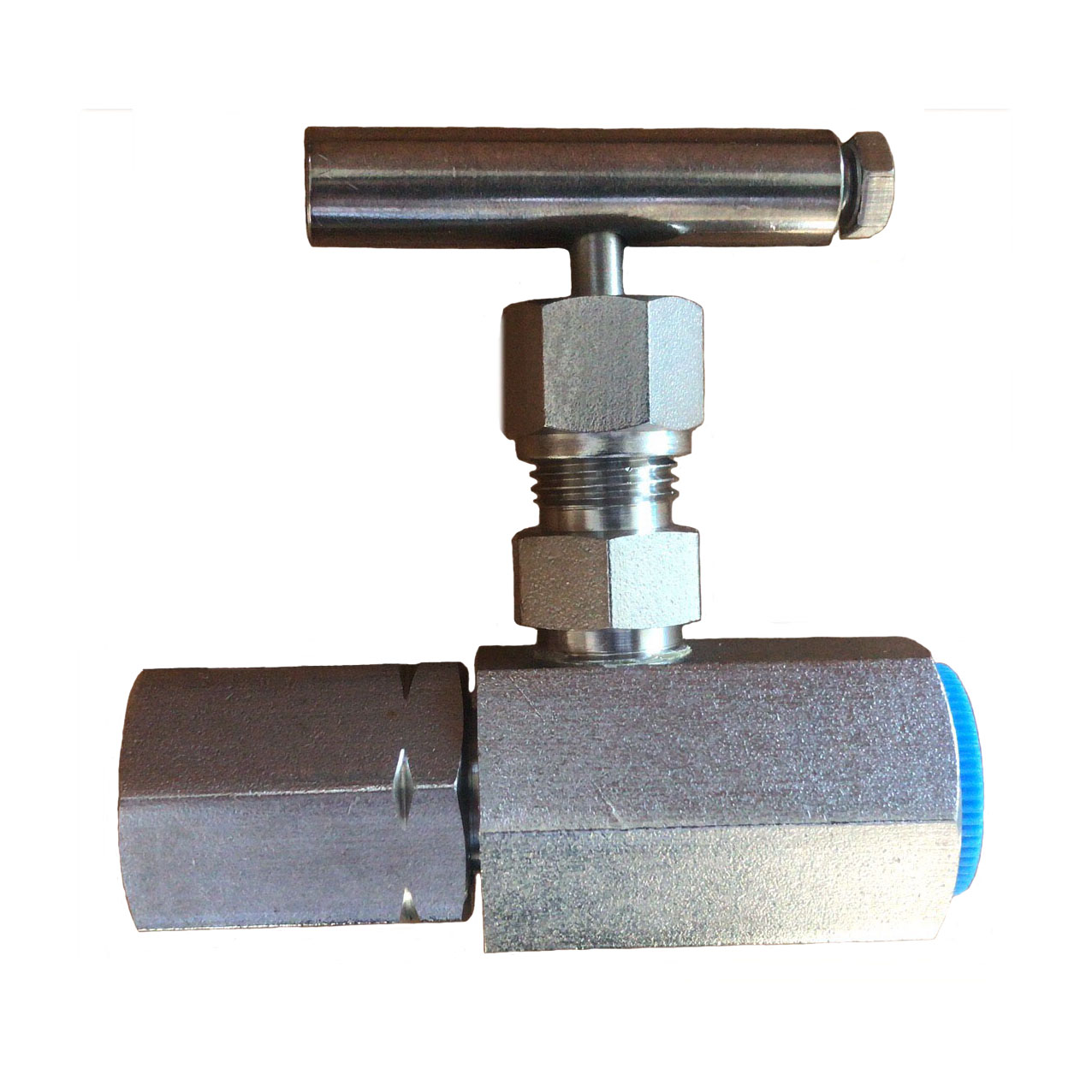

Stainless steel needle valve with coupling adapter sleeve
The needle valve 15NZH54BKM coupling with a coupling adapter (DN 15; PN 160/250) has the following advantages:
easy installation of the differential pressure gauge inlet to the valve outlet, which significantly reduces installation time.;
reducing the number of embedded devices, which reduces the final cost of the equipment;
The adapter sleeve has an opening designed for smooth discharge of residual pressure during disassembly of the differential pressure gauge for inspection/replacement, which increases the safety of routine maintenance.
Working media: (stainless steel body parts 12X18H10T) water, steam, petroleum products, alkaline mixtures, acids that are not aggressive to the materials of the valve parts.
Drawing of needle valve with coupling adapter sleeve
Main parts material
| No | Part Name | Material |
| 1 | Body | Steel 20, 304, 316, 321 |
| 2 | Seat Ring | Brass |
| 3 | Needle stem | Steel 20, 304, 316, 321 |
| 4 | Nipper | Steel 20, 304, 316, 321 |
| 5 | Stem seal | PTFE |
| 6 | Sealing | Steel 35 |
| 7 | Bushing | Steel 35 |
| 8 | Nut | Steel 35 |
| 9 | Set Screw | Steel 35 |
| 10 | Handle | Steel 35 |
