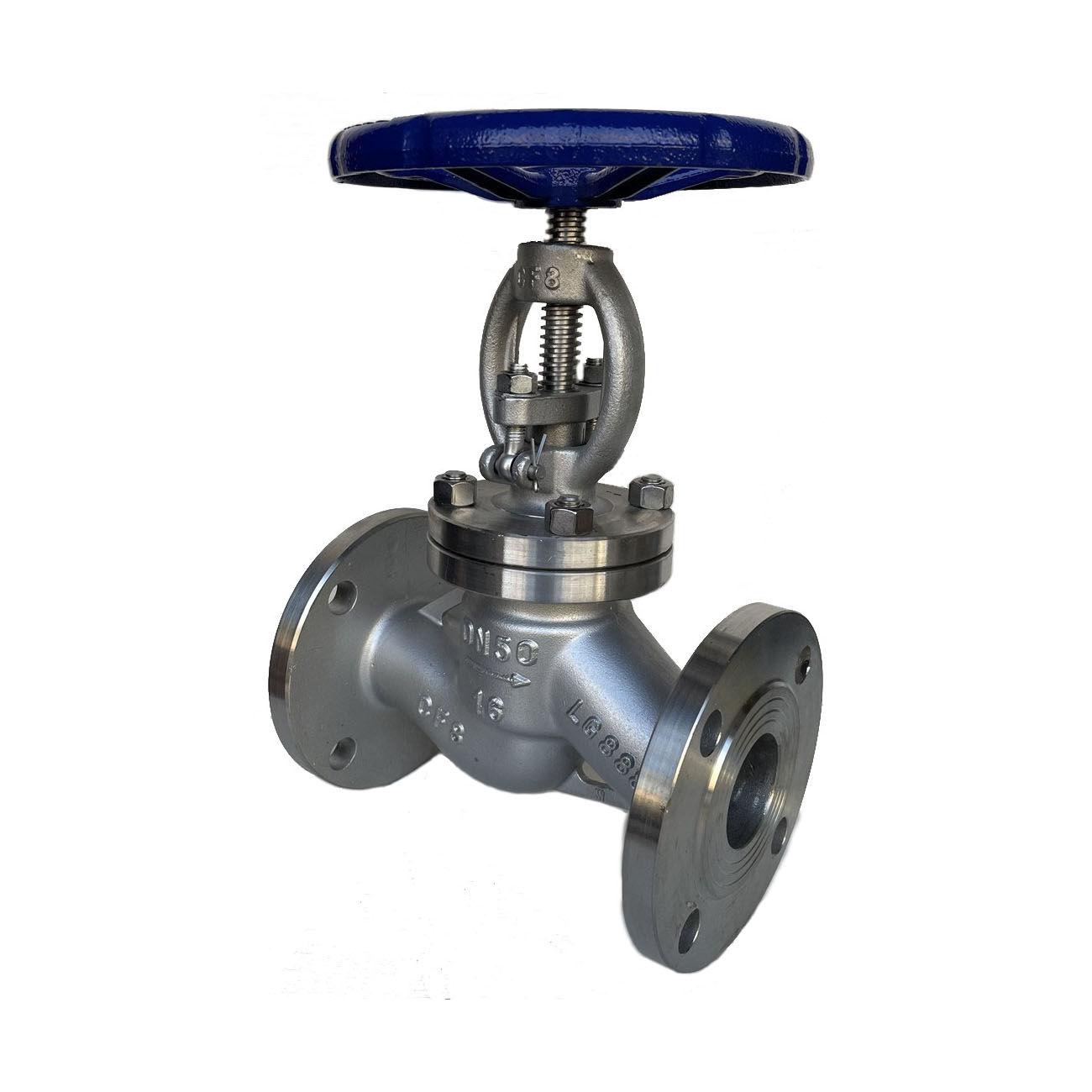

Stainless Steel Globe Valve

Product Name : Stainless Steel Globe Valve

Product ID : 042

Directions

Stainless steel globe valve (shut-off valve)

A stainless steel valve (shut-off valve) is a kind of structural type of valve for a pipeline in which a special shut—off valve moves reciprocatingly along the central axis of the sealing surface to block the flow of the working fluid.

Stainless steel valves (shut-off valves) are used as shut-off devices on pipelines for steam and water and various technological lines, as well as its working medium can be liquefied and natural gases, carbon dioxide, ammonia, and corrosive substances.

Stainless valves have significant differences in operation from their cast-iron counterparts, first of all, they have rather higher nominal pressure and operating temperatures. Because of this, it can be installed in more severe operating conditions. The stainless valve is mainly available in a flanged design, which ensures reliable fastening, high-quality sealing of the joint, simplified disassembly without affecting the other locking elements, as well as cap, coupling and welded versions. Stainless steel valves (shut-off valves) function perfectly even with large pressure drops, withstand the temperature of the working fluid up to + 425 ° C.

Drawing of flanged globe valve

Materials of Main Parts

No.	Part Name	Material
1	Body	CF8
2	Disc	CF8
3	Stem	304
4	Gasket	304+graphite
5	Bolt	304
6	Nut	304
7	Bonnet	CF8
8	Packing	Graphite
9	Pin	304
10	Gland	CF8
11	Stem Nut	Brass
12	Handwheel	Grey Iron

Main Size & Weight

PN	DN	L	D	D1	D2	n-фd	D0	H≈
16	10	130	90	60	40	4-ф14	120	198
16	15	130	95	65	45	4-ф14	120	218
16	20	150	105	75	55	4-ф14	140	230
16	25	160	115	85	65	4-ф14	160	240
16	32	180	135	100	78	4-ф18	180	250
16	40	200	145	110	85	4-ф18	200	262
16	50	230	160	125	100	4-ф18	240	280
16	65	290	180	145	120	4-ф18	280	327
16	80	310	195	160	135	8-ф18	280	355
16	100	350	215	180	155	8-ф18	320	415
16	125	400	245	210	185	8-ф18	360	460
16	150	480	280	240	210	8-ф23	400	510
16	200	600	335	295	265	12-ф23	400	588
16	250	650	405	355	320	12-ф25	450	725
16	300	750	460	410	375	12-ф25	500	925
16	350	850	520	470	436	16-ф25	600	1030
16	400	950	580	525	485	16-ф300	700	1170
16	450	1050	640	585	545	20-ф30	800	1220
16	500	1150	705	650	608	20-ф34	900	1410
16	600	1350	840	770	718	20-ф41	1000	1610

PN	DN	L	D	D1	D2	n-фd	D0	H≈
25	10	130	90	60	40	4-ф14	120	198
25	15	130	95	65	45	4-ф14	120	218
25	20	150	105	75	55	4-ф14	140	230
25	25	160	115	85	65	4-ф14	160	240
25	32	180	135	100	78	4-ф18	180	250
25	40	200	145	110	85	4-ф18	200	262
25	50	230	160	125	100	4-ф18	240	280
25	65	290	180	145	120	8-ф18	280	327
25	80	310	195	160	135	8-ф18	280	355
25	100	350	230	190	160	8-ф23	320	415
25	125	400	270	220	188	8-ф25	360	460
25	150	480	300	250	218	8-ф25	400	510
25	200	600	360	310	278	12-ф25	400	710
25	250	650	425	370	332	12-ф30	450	786
25	300	750	485	430	390	16-ф30	500	925
25	350	850	550	490	448	16-ф34	600	1030
25	400	950	610	550	505	16-ф34	700	1170
25	450	1050	660	600	555	20-ф34	800	1220
25	500	1150	730	660	610	20-ф41	900	1450
25	600	1350	840	770	718	20-ф41	1000	1810

PN	DN	L	D	D1	D2	n-фd	D0	H≈
40	10	130	90	60	40	4-ф14	120	198
40	15	130	95	65	45	4-ф14	120	233
40	20	150	105	75	55	4-ф14	140	275
40	25	160	115	85	65	4-ф14	160	285
40	32	180	135	100	78	4-ф18	180	302
40	40	200	145	110	85	4-ф18	200	355
40	50	230	160	125	100	4-ф18	240	373
40	65	290	180	145	120	8-ф18	280	408
40	80	310	195	160	135	8-ф18	280	436
40	100	350	230	190	160	8-ф23	320	480
40	125	400	270	220	188	8-ф25	360	558
40	150	480	300	250	218	8-ф25	400	611
40	200	600	375	320	282	12-ф30	400	720

PN	DN	L	D	D1	D2	n-фd	D0	H≈
64	10	170	100	70	50	4-ф14	120	198
64	15	170	105	75	55	4-ф14	140	198
64	20	190	125	90	68	4-ф18	160	228
64	25	210	135	100	78	4-ф18	180	275
64	32	230	150	110	82	4-ф23	200	325
64	40	260	165	125	95	4-ф23	240	360
64	50	300	175	135	105	4-ф23	280	410
64	65	340	200	160	130	8-ф23	320	450
64	80	380	210	170	140	8-ф23	360	485
64	100	430	250	200	168	8-ф25	400	537
64	125	500	295	240	202	8-ф30	400	631
64	150	550	340	280	240	8-ф34	450	646
64	200	650	405	345	300	12-ф34	500	813

PN	DN	L	D	D1	D2	n-фd	D0	H≈
100	10	170	100	70	50	4-ф14	120	198
100	15	170	105	75	55	4-ф14	140	202
100	20	190	125	90	68	4-ф18	160	228
100	25	210	135	100	78	4-ф18	180	250
100	32	230	150	110	82	4-ф23	200	326
100	40	260	165	125	95	4-ф23	240	359
100	50	300	195	145	112	4-ф25	280	414
100	65	340	220	170	138	8-ф25	320	434
100	80	380	230	180	148	8-ф25	400	547
100	100	430	265	210	172	8-ф30	450	621
100	125	500	310	250	210	8-ф34	450	732
100	150	550	350	290	250	12-ф34	500	840
100	200	650	430	360	312	12-ф41	550	925

PN	DN	L	D	D1	D2	n-фd	D0	H≈
160	15	170	130	90	62	4-ф23	140	148
160	20	190	140	100	72	4-ф23	160	158
160	25	210	165	115	85	4-ф25	180	175
160	32	230	175	125	92	4-ф27	200	200
160	40	260	215	165	132	8-ф25	240	231
160	50	300	245	190	152	8-ф30	280	262
160	65	340	260	205	168	8-ф30	320	303
160	80	380	300	240	200	8-ф34	400	341
160	100	430	355	285	238	8-ф41	450	485
160	125	500	390	318	270	12-ф41	450	500
160	150	550	480	400	345	12-ф48	500	550
160	200	650	545	450	390	12-ф54	550	600

*The above dimensions are for reference only.
