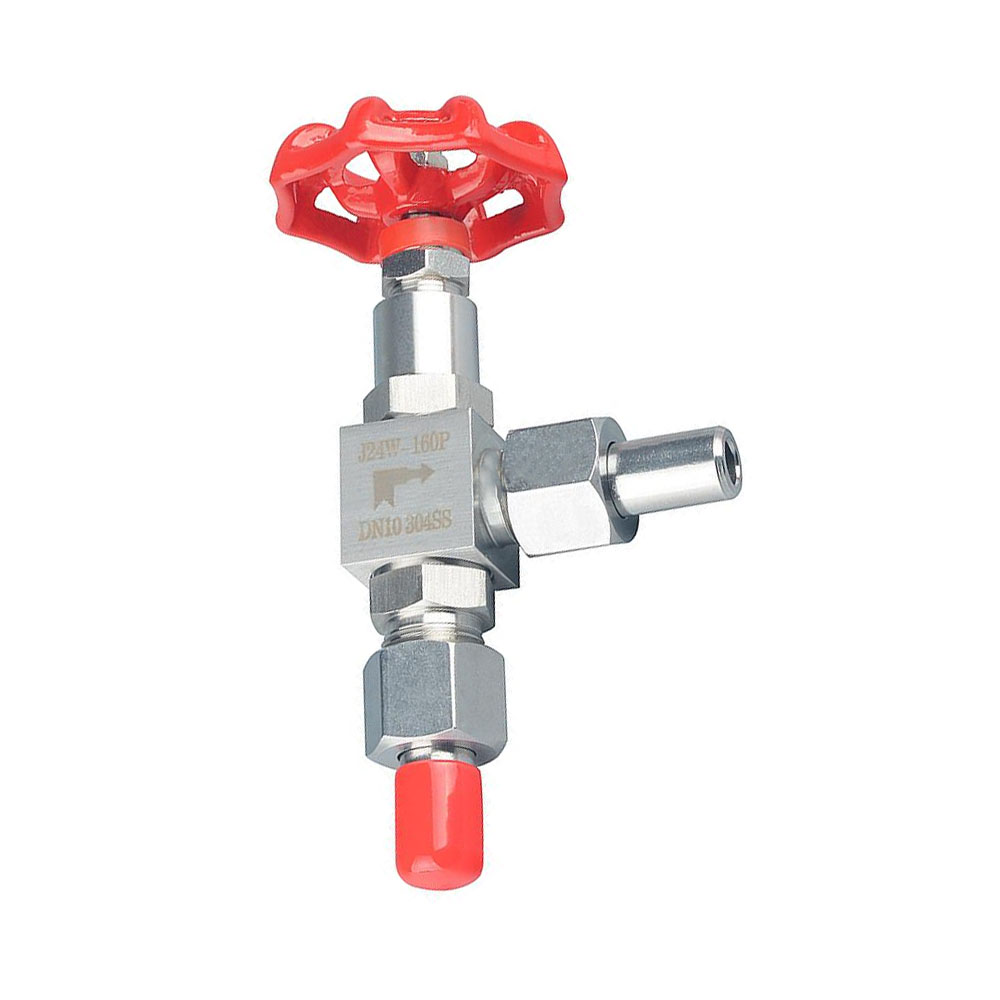

Stainless Steel Male Thread Angle Type Needle Valve
Stainless steel needle valve 15nzh13bk Ru160
Description
This compact and economical mini-series needle valve is manufactured to the highest standards. Designed with low torque, it is lightweight and easy to operate. The pressure reaches 6,000 psi (414 bar). Its high-precision metal cover and body are sealed, making it suitable for high-pressure operation.
Design features
① Compactness and lightness;
Sealing ring + PTFE sealing device, absolutely no leakage during valve stem operation;
Sealing under the thread can prevent the thread from being corroded by the liquid medium;
④ Two flow ports with the correct flow direction;
⑤ Working temperature: -15 ℃ to 170 ℃;
⑥ The inlet seal is installed according to the standard;
The firmware can be flexibly replaced to extend its service life .;
The raw materials of all the main parts can be tracked.
⑨100% passed static pressure test;
⑩ The upper seat is designed to extend the life of the gasket;
All construction materials comply with the requirements of the latest version of NACE MR-01-75.
Drawing of Stainless Steel Male Thread Angle Type Needle Valve
Main parts material
| No | Part Name | Material |
| 1 | Connecting pipe | Steel 20, 304, 316L, 321 |
| 2 | Connecting nut | Steel 20, 304, 316L, 321 |
| 3 | Body | Steel 20, 304, 316L, 321 |
| 4 | Stem | Steel 20, 304, 316L, 321 |
| 5 | Packing | Graphite, PTFE |
| 6 | Gland | Steel 20, 304, 316L, 321 |
| 7 | Locking Nut | Steel 20, 304, 316L, 321 |
| 8 | Handwheel | Steel |
Main dimensions
| DN,mm | ф | ф1 | L1 | L |
H | D0 | Approximate weight, kg |
| 6 | ф14 | ф12 | 70 | 70 | 96 | 63 |
1,0 |
| 10 | ф18 | ф14 | 80 | 80 | 115 | 78 |
1,2 |
| 15 | ф22 | ф17 | 90 | 90 | 122 | 100 | 2,2 |
| 20 | ф28 | ф19 | 110 | 110 | 156 |
110 |
3,8 |
| 25 | ф33 | ф22 | 115 | 115 | 170 |
140 | 4,5 |
*The above dimensions are for reference only.
